Sloped Roof Snow Load Cases

NBC 2025
v1.0.0
File:
Project:
Designer:
Date:

Climatic Data

Source
Region
Location
info Location Modified
close

The location data has been modified since the file was saved.

info Location Not Found
close

The location could not be loaded. Make sure the location exists and is shared with you.

Ground snow load
Ss:
Rain Load
Sr:
Winter Average
Temperature, Tws:
°C
Wind speed, Vws:
m/s
Importance factor
Is:
Factors
Cb:

If Cb left blank, provide the dimensions in the roof geometry to compute Cb

Wind Factor, Cw:
info
If Cw left blank, Cw will be computed.
Thermal Factor, CT:
Average indoor temperature, Tin:
°C
Roof Thermal Transmittance, Uroof:
W/(m2K)
info
Provide Ct or Tin and Uroof.
Roof Geometry
Pitch:
/12
Slippery:
Roof Plan dimensions
Dimensions used to calculated Cb if Cb left empty.
Longer dimension, l:
m
Shorter dimension, w:
m

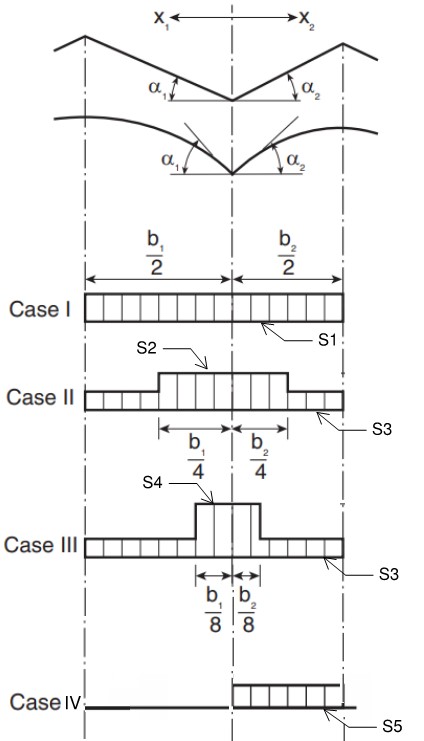

snow load cases

Specified Snow Load

S = Is[Ss(CbCwCsCa)+Sr] [4.1.6.2]

Factors

User input values:
Ss = 1 / Sr = 1
Importance Factor, ULS: Is = 1.0 / SLS: Is = 0.9
Roof slope = 0 degrees
Slope Factor
For non-slippery roof:
Slope <= 30 degrees.
Cs = 1

ULS:

S = 1.0[1(0.8*1.0*1*1.0)+1] = 1.8kPa

S = 1.8 kPa

S = 37.6 psf


SLS:

S = 0.9[1(0.8*1.0*1*1.0)+1] = 1.62kPa

S = 1.62 kPa

S = 33.8 psf

This information must be read or used in conjunction with Part 4 of the NBC 2025. In the event of discrepancies, Part 4 of the NBC 2025 shall govern.
